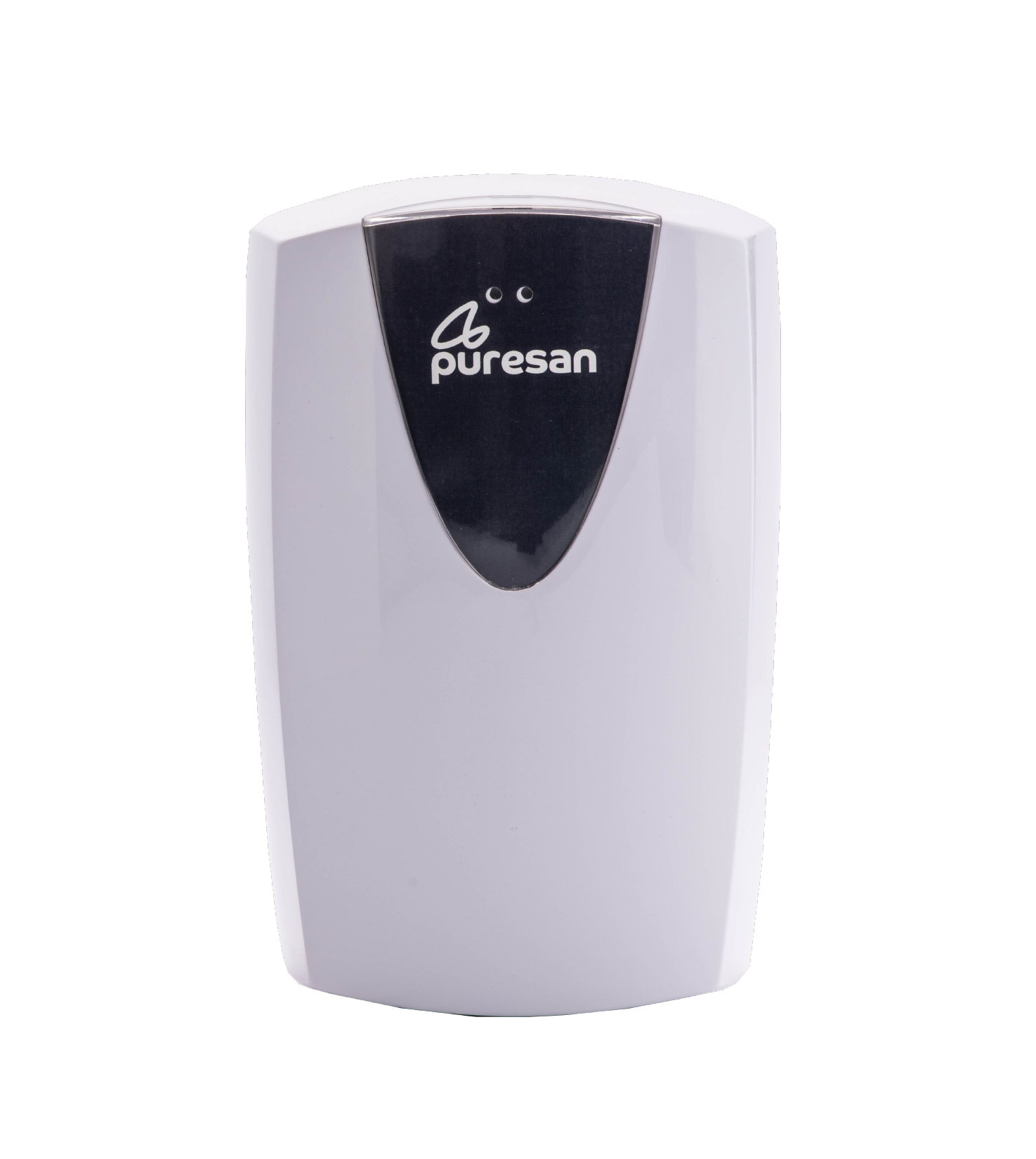

Puresan - WC/Urinal Cleaning and Deodorising System
The Puresan Dispenser is a wall-mounted liquid dosing system designed to continuously freshen washrooms while helping reduce bacteria and germ build-up in WCs and urinals. It delivers a controlled dose of cleaning and deodorising fluid directly into the WC/Urinal cistern or pipework to combat odours at source.
Puresan uses an integrated pump mechanism to deliver the cleaning fluid. This provides significantly greater installation flexibility, as the system does not rely on gravity to operate. The dispenser can therefore be installed above or below the cistern, including up to half a metre below, making it ideal for restricted spaces or high-level cistern installations.
With over 3,000 metered doses from a 310ml refill and programmable 30- or 60-day service intervals, the system aligns easily with existing maintenance schedules for predictable, efficient servicing.
- Pump-operated liquid dosing system
- Can be installed above or below the cistern
- Installation flexibility - up to 0.5m below the cistern
- 310ml liquid refill capacity
- Over 3,000 metered doses per refill
- Advanced cleaning formulation to combat bacteria and germ build-up
- Programmable 30-day or 60-day service intervals
- Built-in spirit level for accurate installation
- Tamper-resistant design with concealed wiring
- Keyed or unkeyed locking options
- Warning LEDs for low battery and refill replacement
- 1 year warranty
- Product Code: H1210005010
- Power Source – Operates on 2 × D-cell batteries.
- Materials – Dispenser body: Polypropylene; Cover: ABS; Lens: Polycarbonate.
- Finish / Colour Options – White
- Dimensions – Height: 220 mm × Width: 145 mm × Depth: 80 mm.
- Warranty – 1-year manufacturer’s warranty.
Additional Product Information
The Puresan Dispenser is engineered to support efficient, reliable washroom servicing. By delivering a controlled dose of cleaning and deodorising fluid directly into the WC or urinal cistern or pipework, it treats odours at source — helping to reduce reactive call-outs and maintain consistent hygiene standards between visits.
The integrated pump system provides a major operational advantage. Because it does not rely on gravity, engineers can install the unit **above or below the cistern — including up to half a metre below** — allowing greater flexibility in difficult or restricted installations. This reduces fitting constraints, shortens installation time, and enables consistent product specification across a wider range of washroom layouts.
With over 3,000 metered doses per 310ml refill and programmable 30- or 60-day service intervals, Puresan can be aligned with existing maintenance schedules. This supports predictable route planning, reduces unnecessary visits, and helps optimise refill usage — improving service efficiency and contract profitability.
Built for dependable operation in public environments, the unit includes concealed wiring, optional keyed or unkeyed locking, a built-in spirit level for fast and accurate installation, and warning LEDs for low battery and refill replacement. These features help minimise downtime, prevent tampering, and make ongoing servicing straightforward for maintenance teams.
Puresan Aerosol Fragrance Refills:
The Puresan uses 310 ml concentrated refills available in a wide range of fragrances. Each refill not only eliminates unpleasant odours at the source but also infuses a fresh, pleasant fragrance into the environment.
Combined with its programmable dosing features, the Puresan dispenser and refills range deliver a reliable, cost-effective cleaning and deodorising solution for washroom service providers.
Fragrance Refills
The Puresan dispenser uses 310ml concentrated refills, specially formulated to clean and deodorise washroom surfaces. Available in a variety of fresh fragrances, each refill targets bacteria and odours, helping to maintain a hygienic and pleasant environment.
Refill Fragrance (310ml) Scents to choose from:
*Bio-Friendly Liquid Refills:
Our bio-friendly liquid refills include Bio Senso, with a refreshing Senso Mandarin fragrance, and Bio-Pure, which is non-fragranced. These eco-friendly products harness natural microorganisms to break down odour-causing substances, completely neutralising odours at their source.
Additionally, they contain biodegradable surfactants derived from coconut oil, ensuring effective cleaning that’s kind to the environment.
Installation Details
What You’ll Need
- Puresan 310ml Dispenser
- Mounting kit (screws and wall plugs – included)
- Drill with 6 mm bit
- Screwdriver
- 2 x C-cell (1.5V) batteries (not included)
- 310ml Puresan refill (sold separately)
1. Choose a Suitable Location
- For best effectiveness, install above the WC cistern or near urinals or sinks
- Mount approximately 1.5–2 metres from the floor
- Ensure the surface is clean, dry, and flat
2. Mark and Drill Holes
- Open the dispenser cover
- Use the backplate as a template to mark two drill points
- Drill two 6 mm holes and insert wall plugs
3. Mount the Dispenser
- Align the dispenser with the drilled holes
- Secure it to the wall using the provided screws
- Ensure it is firmly fixed
4. Insert Batteries
- Open the battery compartment inside the dispenser
- Insert 2 x C-cell batteries, checking the correct polarity
- Close the compartment securely
5. Insert the Refill
- Open the dispenser cover
- Insert a 310ml Puresan refill bottle with the nozzle facing forward
- Close the cover
6. Program the Dispenser
- Use the control panel to set spray intervals and operating hours
- Refer to the user manual for full programming options
- Press OK to confirm settings
7. Test and Finish
- Press the test button to ensure proper spray function
- Close and lock the cover if required
- Your dispenser is now ready for use!
Why Choose Our Automatic WC/Urinal Cleaner?
Reduced Maintenance
Our automatic dispenser releases a consistent dose of fragranced liquid cleaner directly into the WC or urinal, reducing the need for manual intervention and keeping your facilities cleaner for longer.
Enhanced Hygiene
Formulated to fight bacteria and break down stains, our cleaner targets the micro-pores in porcelain surfaces—helping prevent the build-up of limescale, uric acid, and other deposits that cause odours and hygiene issues.
Fresh, Clean Pipes
Bad smells don’t come from the bowl—they start in the pipes. Our powerful cleaning solution dissolves internal blockages and build-ups, helping to keep your plumbing flowing freely and smelling fresh.
Improved User Experience
Create a restroom environment that’s fresh, clean, and pleasant, day in, day out. Whether for public spaces or workplace washrooms, your users will notice the difference.
